Pyrophyllite, a hydrous aluminum silicate mineral (Al2Si4O10(OH)2), with unique physical and chemical properties allowing it to be a partial or full replacement to materials like Talc and Kaolin because it has similar characteristics and can be beneficially used in various industrial applications.

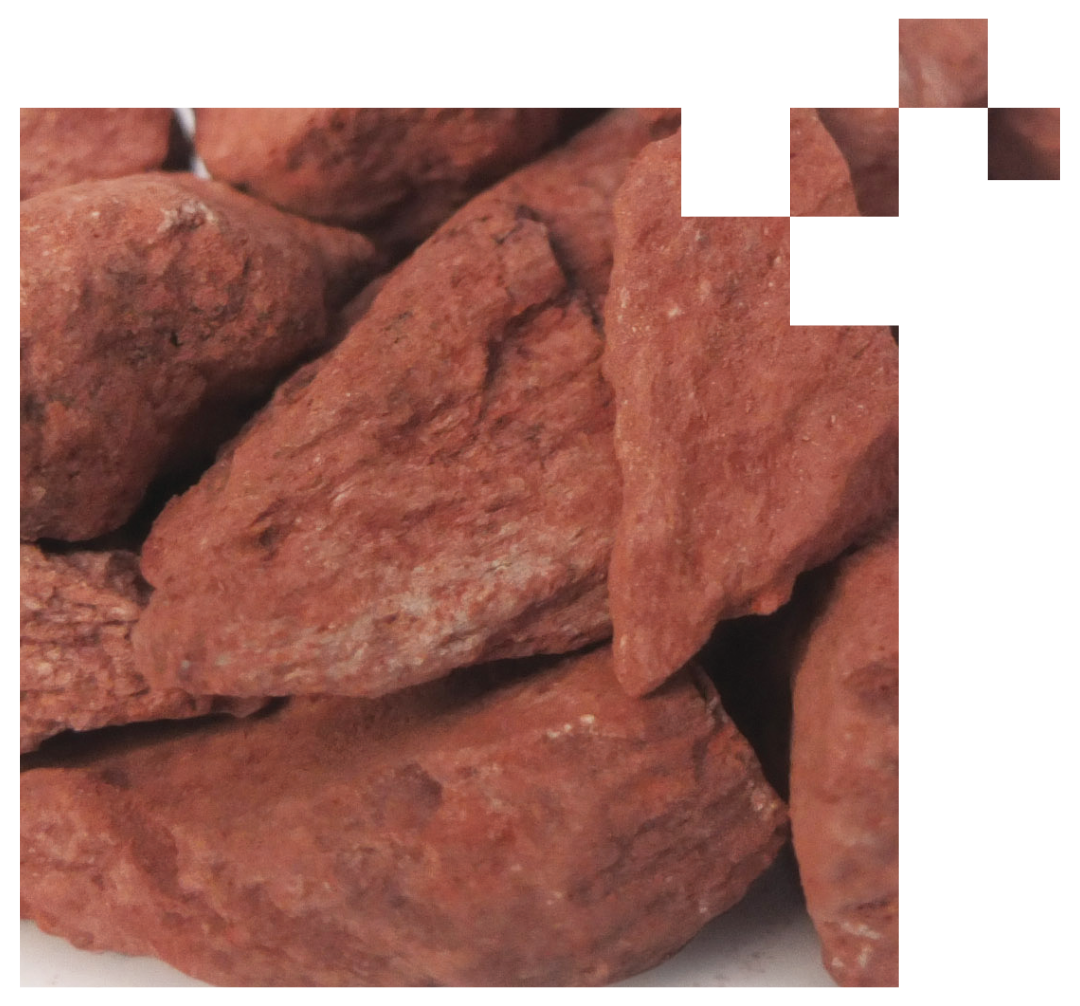

Red Pyrophyllite

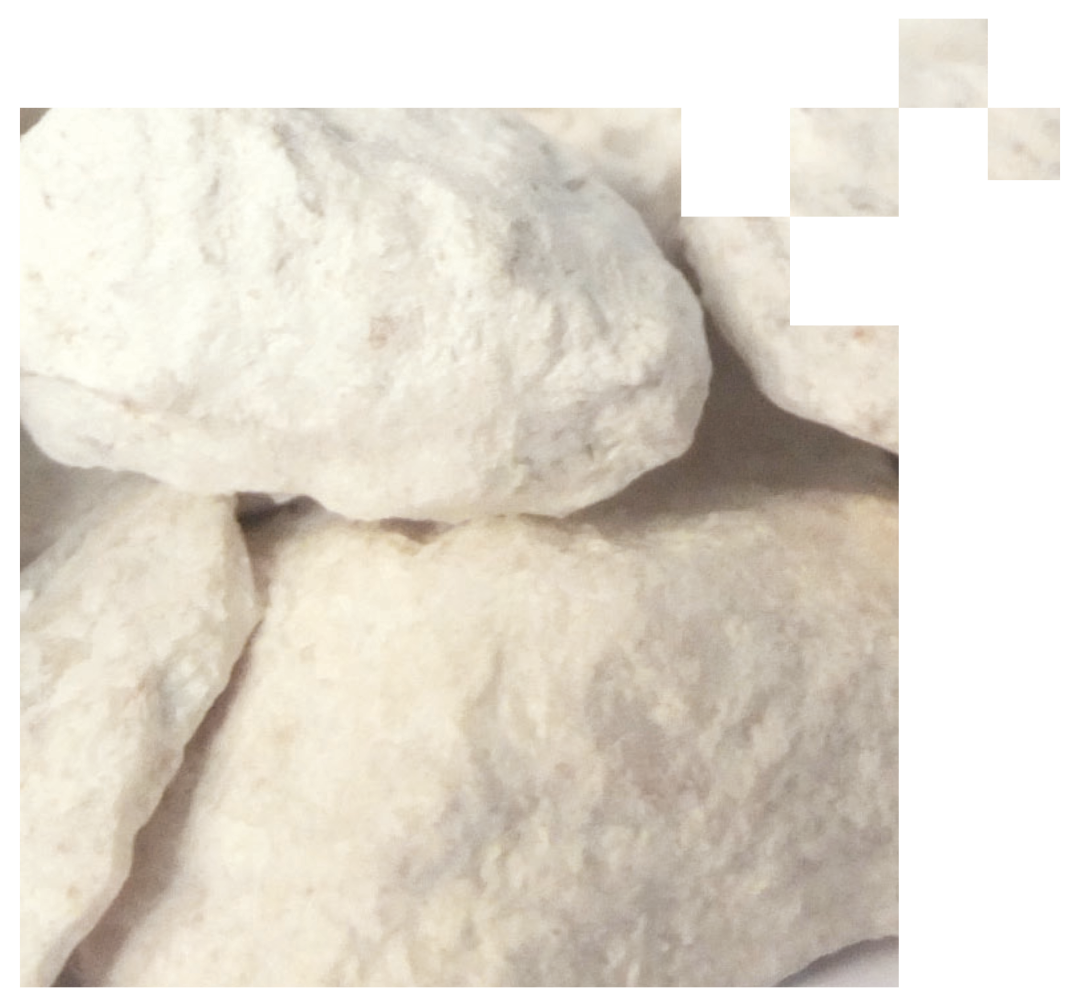

White Pyrophyllite

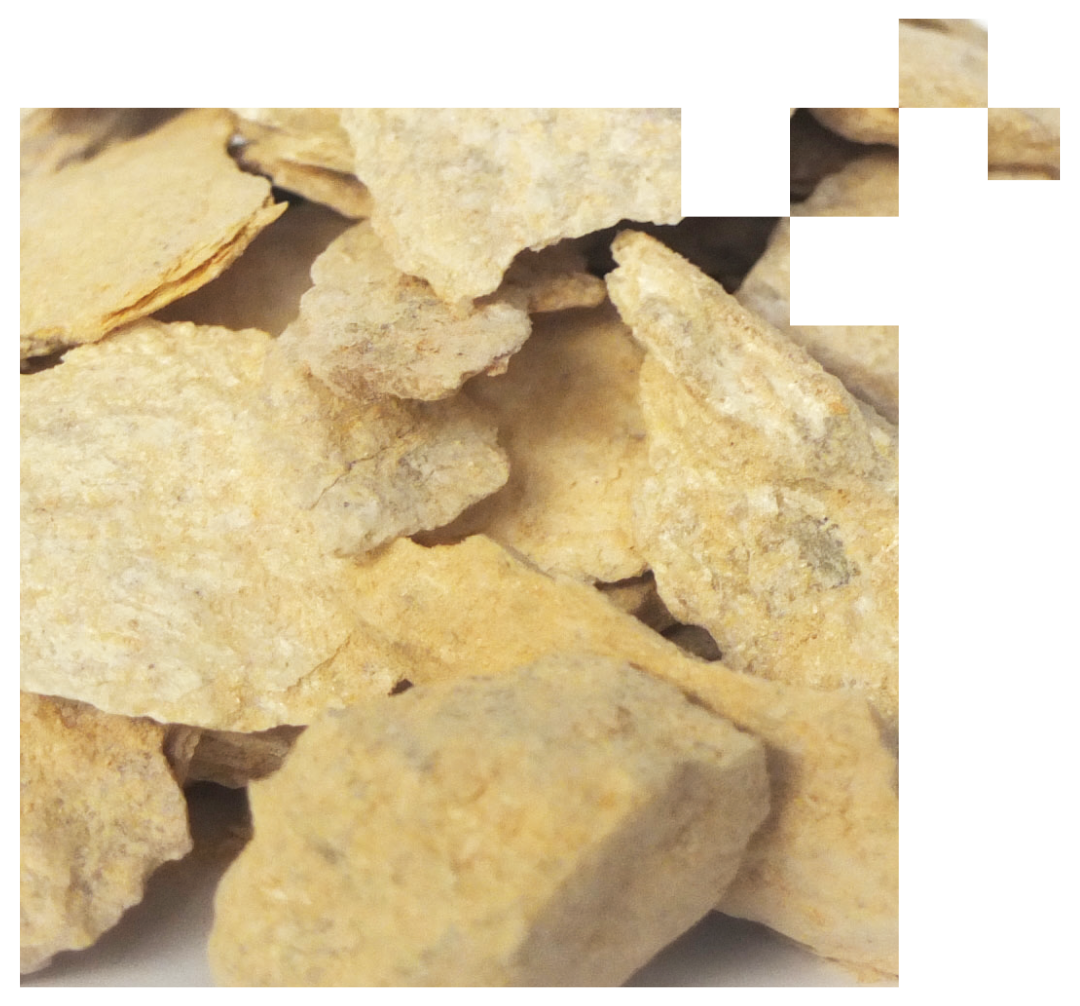

Yellow Pyrophyllite
(XRF) Analysis for the different types of Pyrophyllite
| Chemical Component | White Pyrophyllite | Yellow Pyrophyllite | Red Pyrophyllite |
|---|---|---|---|
| Silicon Dioxide (SiO2) | 74.5 +5.0 | 74.5 +4.0 | 70 + 9 |
| Aluminum Oxide (Al2O3) | 20.0 +3.0 | 19.5 +2.5 | 17 + 3.0 |
| Iron Oxide (Fe2O3) | 0.40 max | 0.41 – 2.00 | 2.01 – 6.50 |
| Magnesium Oxide (MgO) | 0.10 max | 0.10 max | 0.45 max |
| Calcium Oxide (CaO) | 0.40 max | 0.40 max | 0.95 max |
| Sodium Oxide (Na2O) | 0.25 max | 0.25 max | 0.45 max |
| Potassium Oxide (K2O) | 0.50 max | 0.50 max | 3.00 max |
| Titanium Dioxide (TiO2) | 0.85 max | 0.85 max | 0.80 max |
| Diphosphorus Pentoxide (P2O5) | 0.25 max | 0.25 max | 0.20 max |
| Chromium Oxide (Cr2O3) | 0.004 max | 0.004 max | 0.004 max |
| Sulfur Trioxide (SO3) | 0.26 max | 0.26 max | 1.45 max |
| Manganese Oxide (MnO) | 0.03 max | 0.03 max | 0.05 max |
| Chlorine (Cl) | < 0.05 | < 0.05 | < 0.05 |
| LOI @1000°C | 3.4 - 5.4 | 3.2 – 4.8 | 3.5 – 7.5 |
Industrial Uses of Pyrophyllite

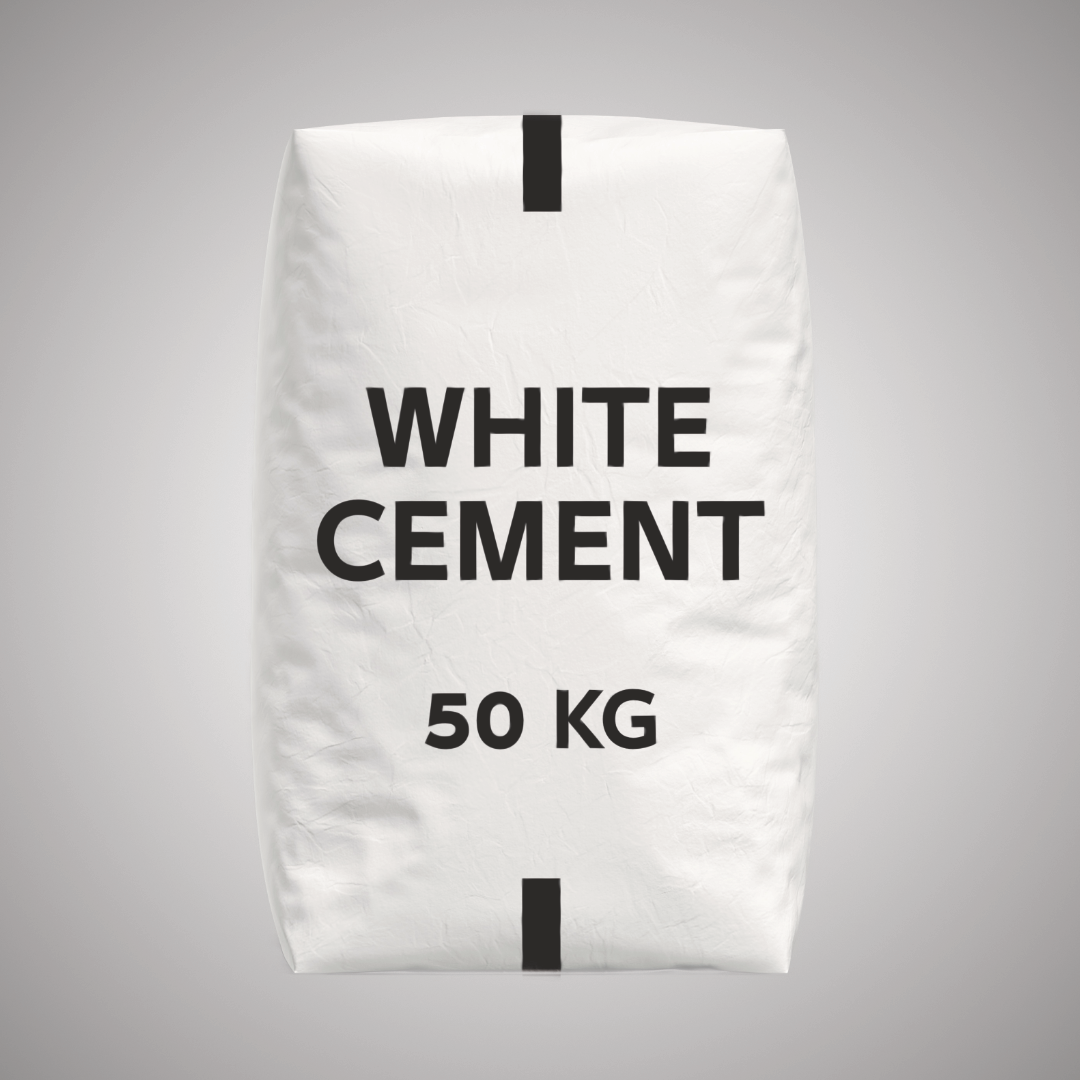

White Cement
Pyrophyllite is used as an alternative to Kaolin in the white cement production to reduce the temperature of making clinker due to increased interaction in Pyrophyllite. The clinker formulations based on Pyrophyllite generally have better physical properties compared to the clinker made with Kaolin and Silica. It also maintains +90% whiteness in the final product of white cement.

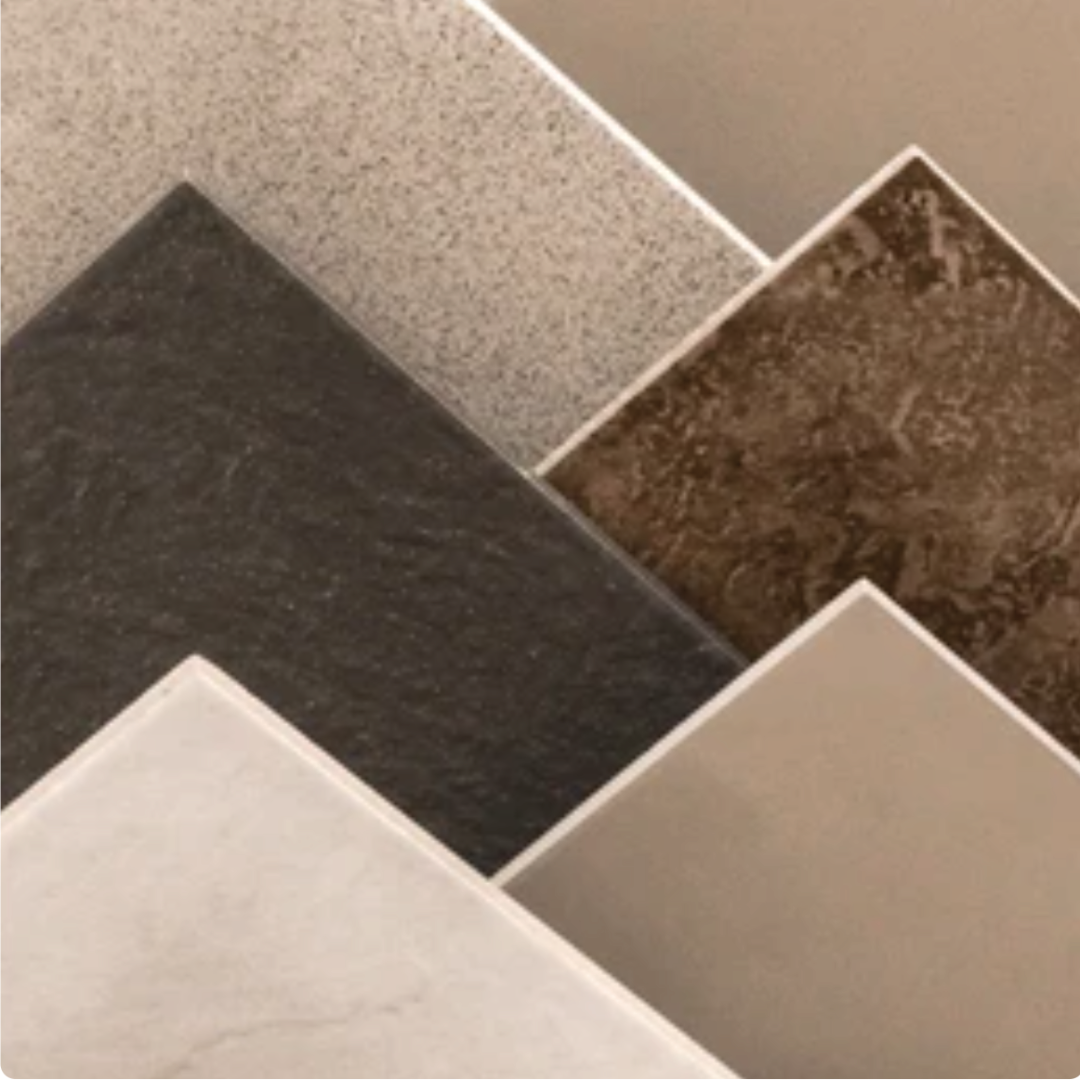

Porcelain Tiles
Pyrophyllite is used in the ceramics industry to enhance mechanical characteristics, chemical resistance, and thermal shock resistance. This mineral also offers excellent dielectric strength and promotes the glazing of finished products without cracks. Utilizing Pyrophyllite in the ceramic industry allows for faster firing cycles than comparable materials due to its quick heating and ability to transform into mullite at a lower temperature (1100°C).

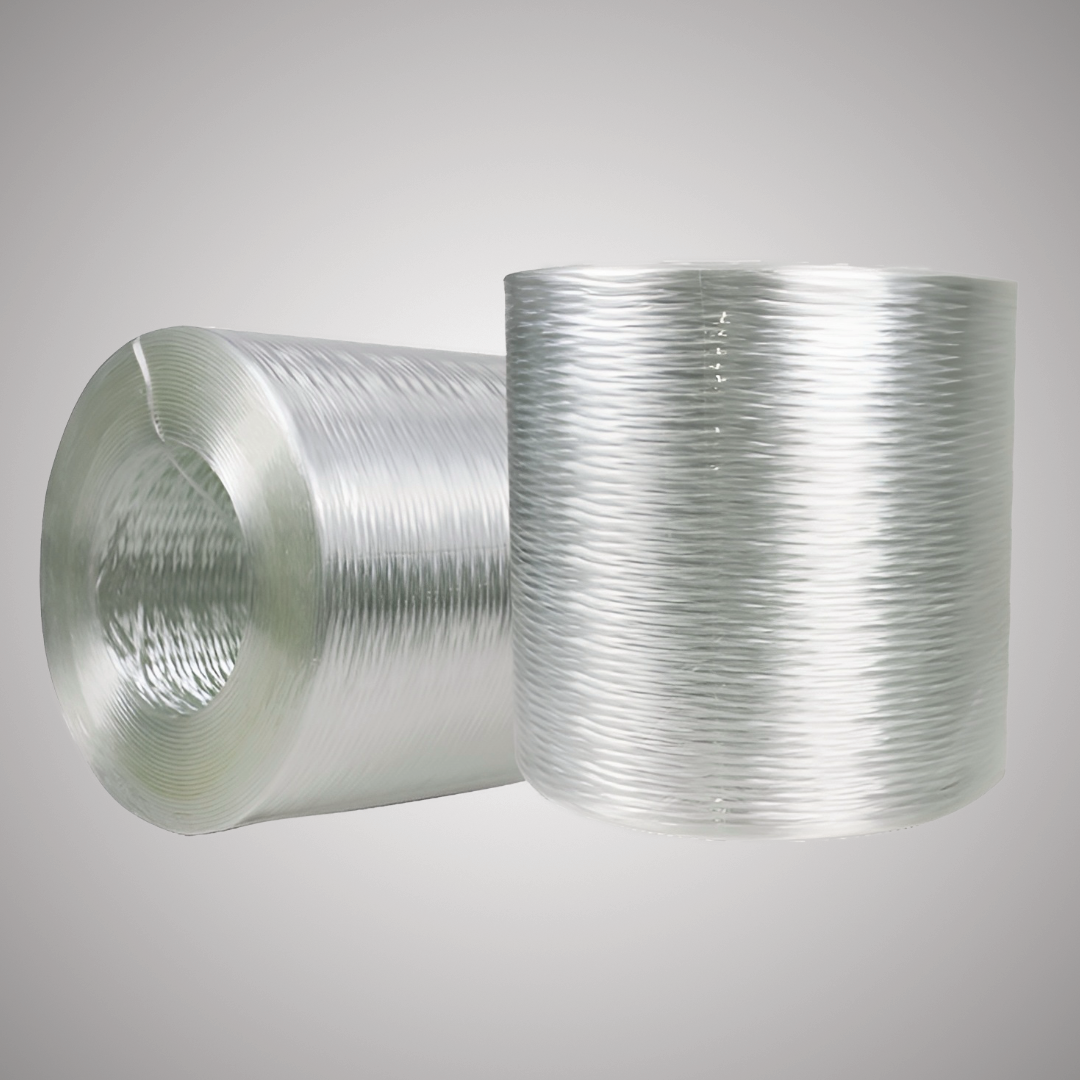

Fiberglass
Pyrophyllite ore contains a high percentage of aluminum oxide and a low concentration of iron, titanium oxides, and alkalis, thus it can be effectively used in the manufacture of fiberglass as a partial substitute for kaolin. it has a wide range of advantages such as reducing the cost of production and reducing the amount of sand added to the main mixtures, which helps speed up the disslution by 30% and increase productivity by 12%. it also saves the energy used in smelting by 20% to 25%.

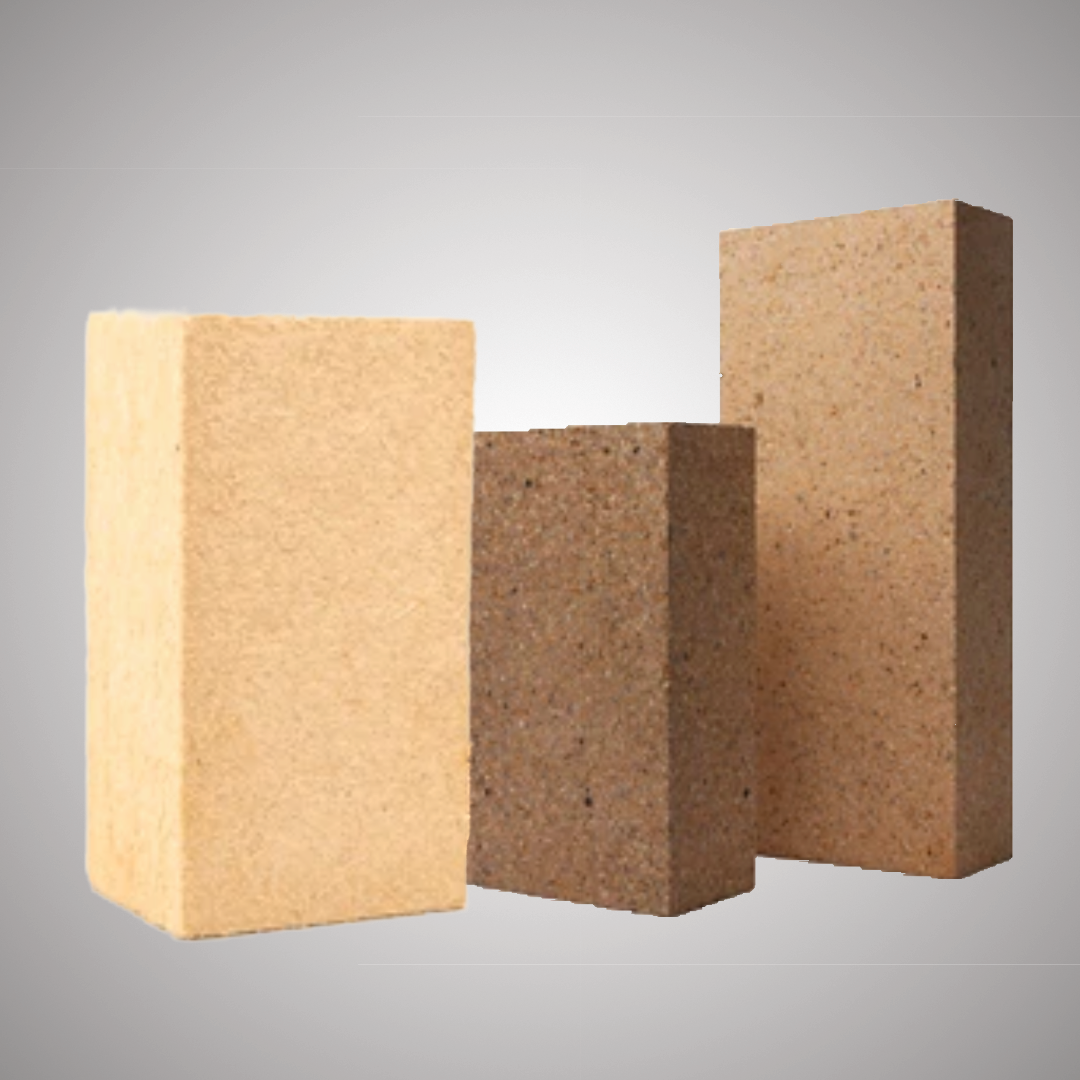

Refractories
Known for its high melting point and thermal stability, Pyrophyllite is an essential raw material in manufacturing of refractory materials which are used in lining melting furnaces and crafting molds resistant to extreme temperatures.

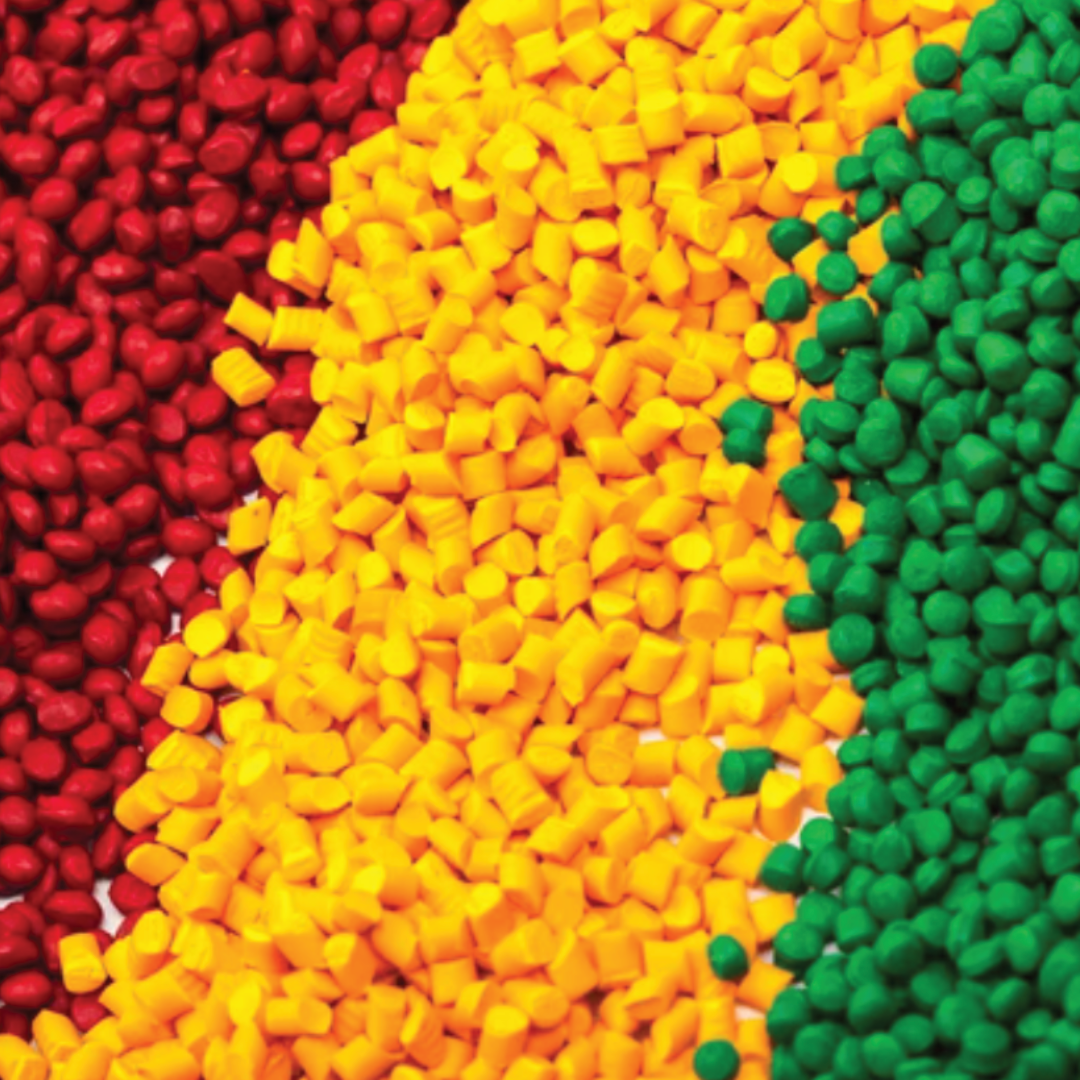

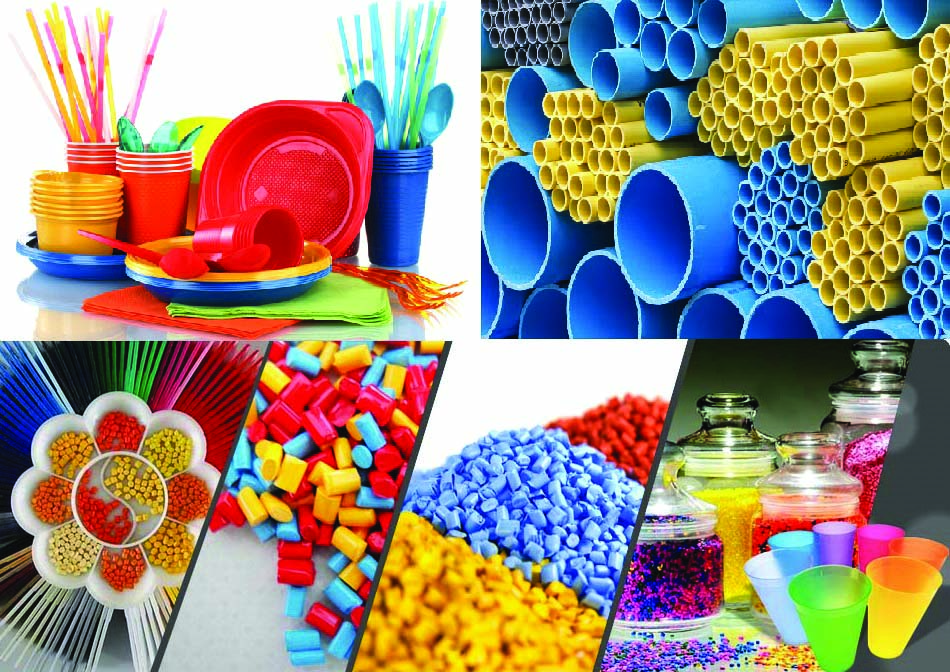

Plastics
Pyrophyllite acts as a reinforcing filler in the plastics industry, improving their mechanical strength, dimensional stability, and resistance to heat and chemicals. It finds application in the production of plastic pipes, films, coatings, composites, and various molded plastic products.
Agriculture
Pyrophyllite serves as a valuable fertilizer carrier, enriched with essential nutrients like calcium, magnesium, potassium, and iron. Its unique structure aids in nutrient retention, soil improvement, and reduction of leaching, contributing to sustainable agricultural practices. As well as the ability to absorb harmful heavy metals from the soil.
Paint Industry
Pyrophyllite is chosen for paint production based on its characteristics such as whiteness, particle size, oil absorption capacity, and acid solubility, which contribute to its smooth application due to its layered molecular structure. It serves as a pigment extender and suspending agent, improving paint volume, and preventing cracking.
Other Uses
In addition to those main industries, Pyrophyllite can be used in the industry of paper, insecticides, electrical insulation, rubber, personal care, pharmaceuticals and glass.
Quality

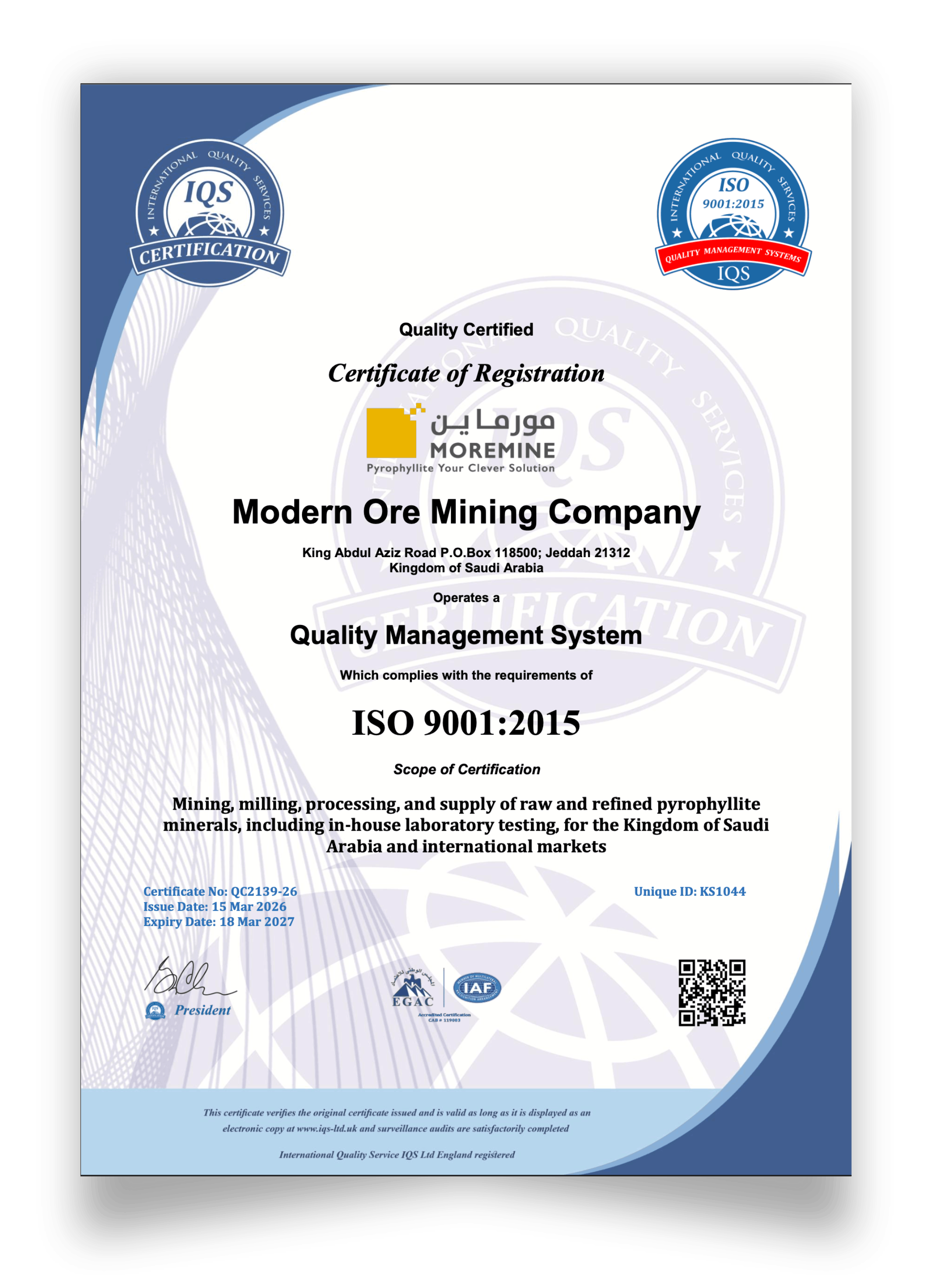

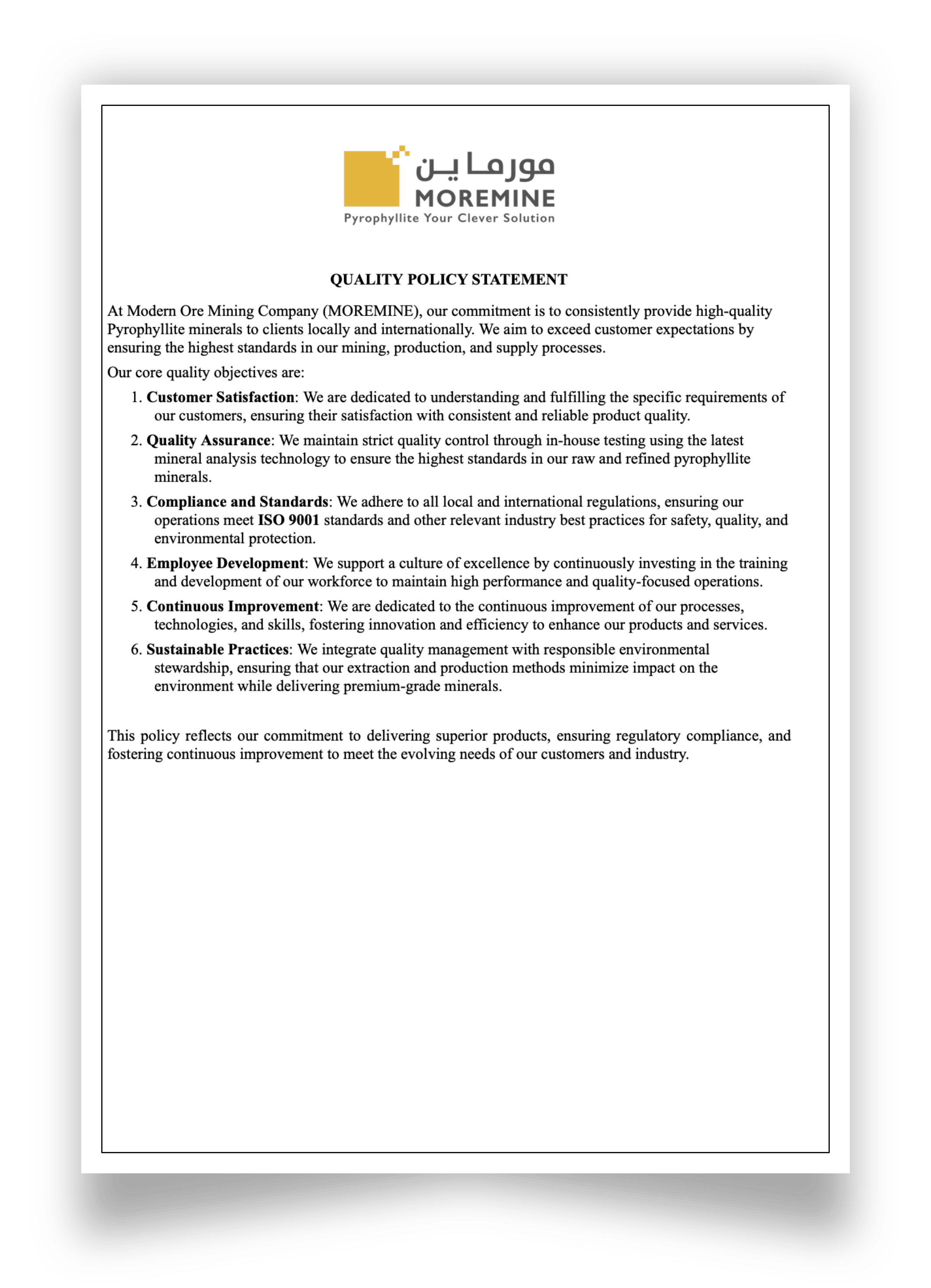

At Modern Ore Mining Co., quality is a fundamental principle to our pyrophyllite mining and processing operations. The company is certified under ISO 9001:2015, ensuring our quality management system follows internationally recognized standards at every stage — from raw material extraction to dispatch of products to the customers. In line with this commitment, we are dedicated to fully understanding our customers’ requirements and proactively collaborating to identify the most suitable technical and commercial solutions, ensuring that customer demands are met.

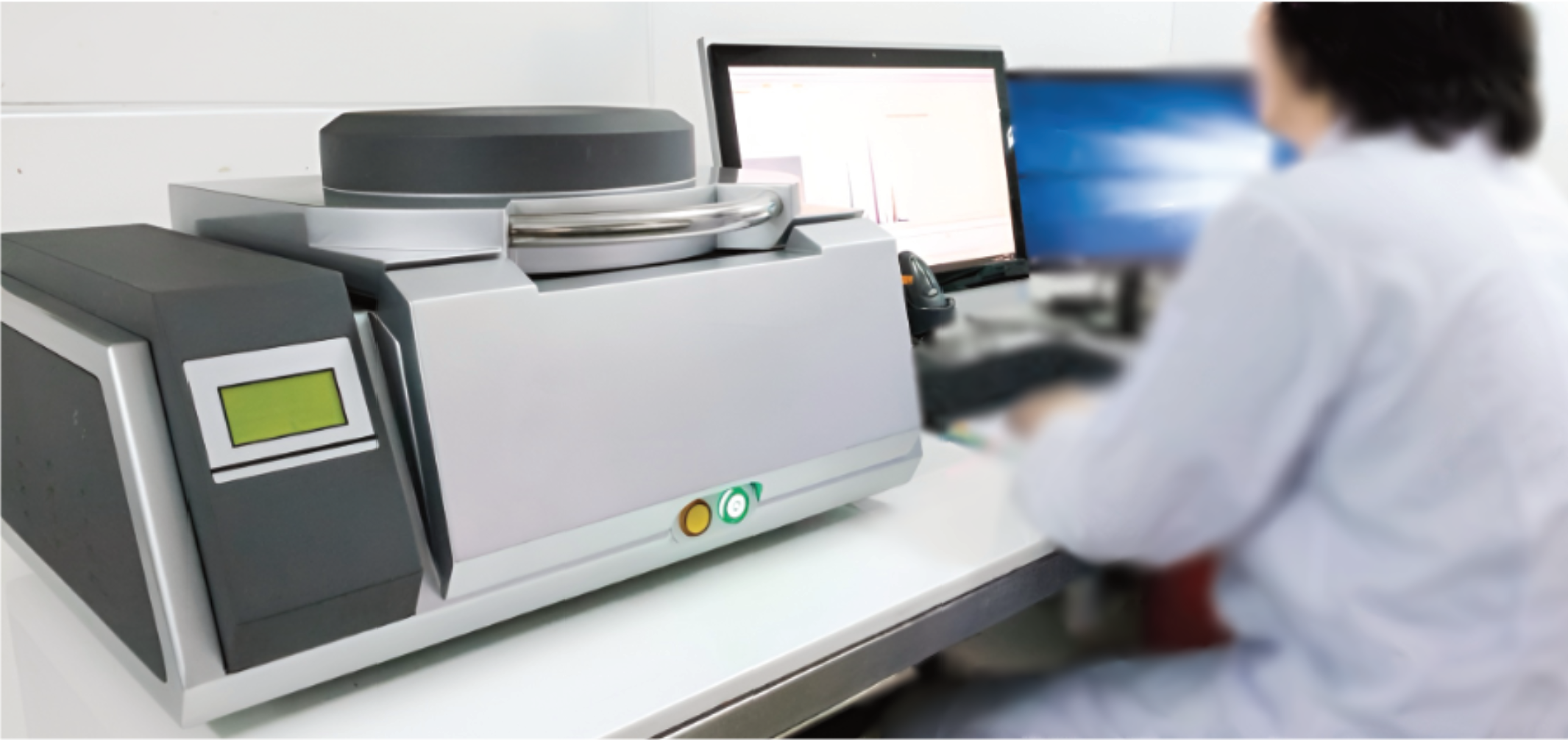

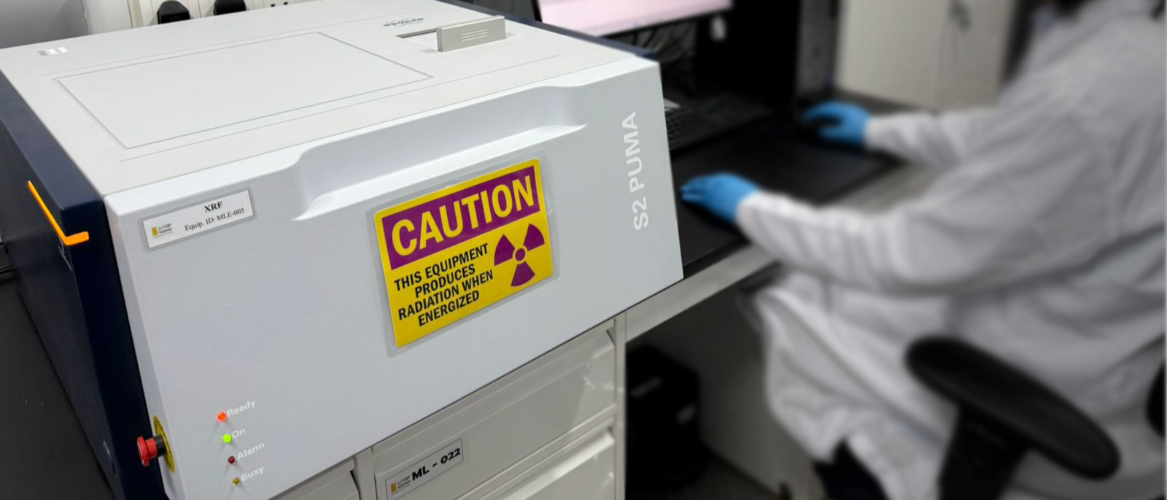

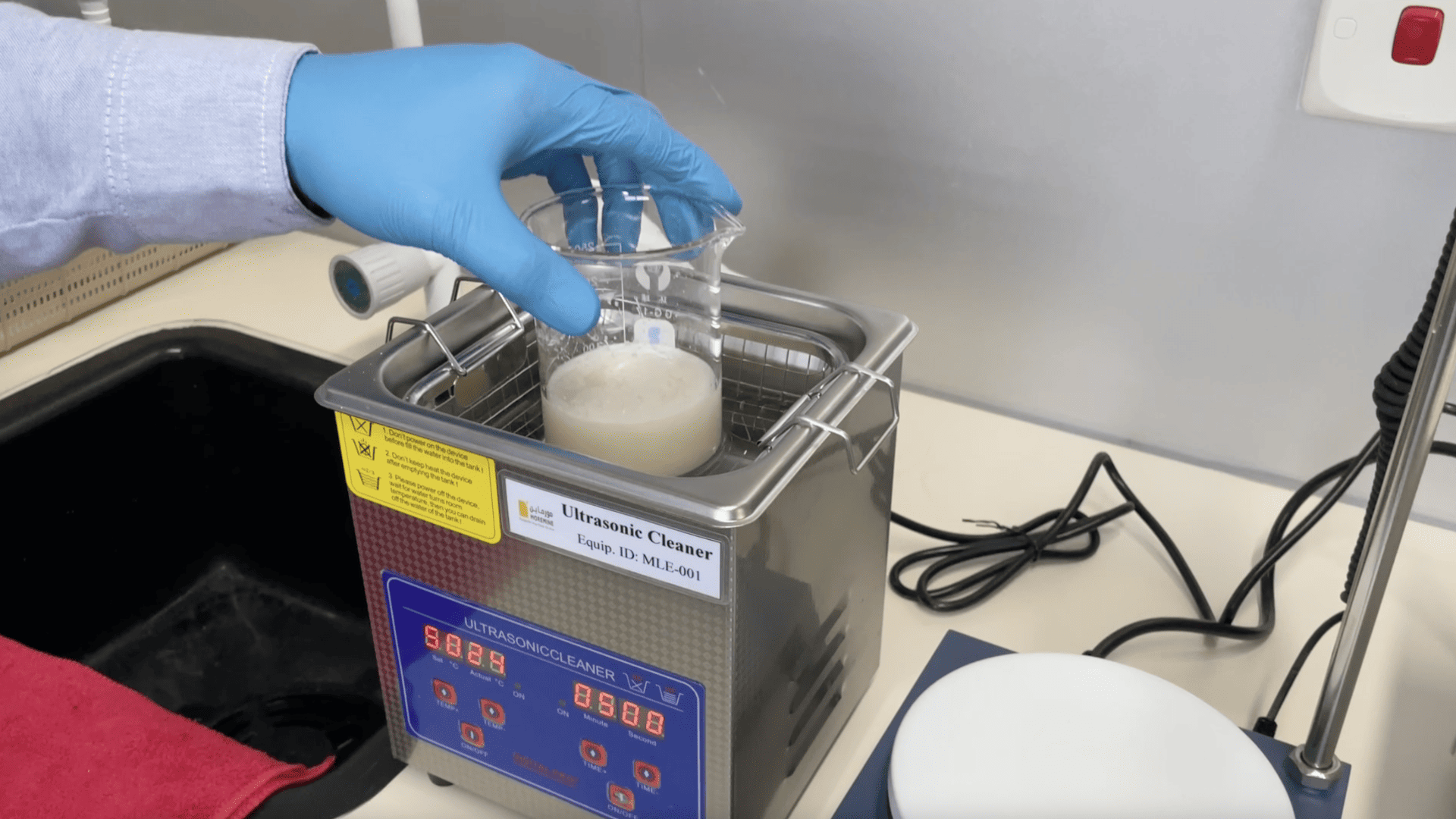

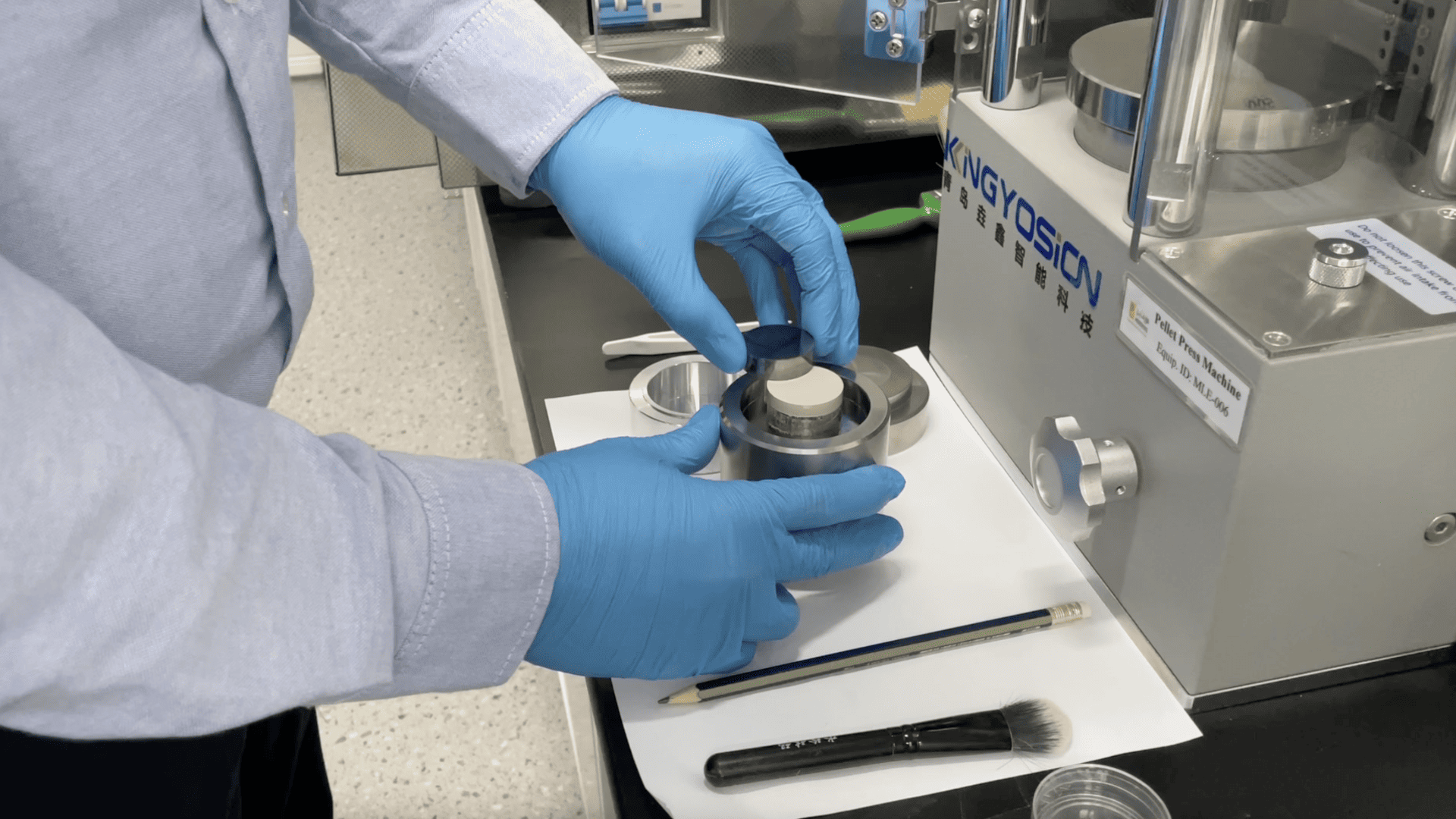

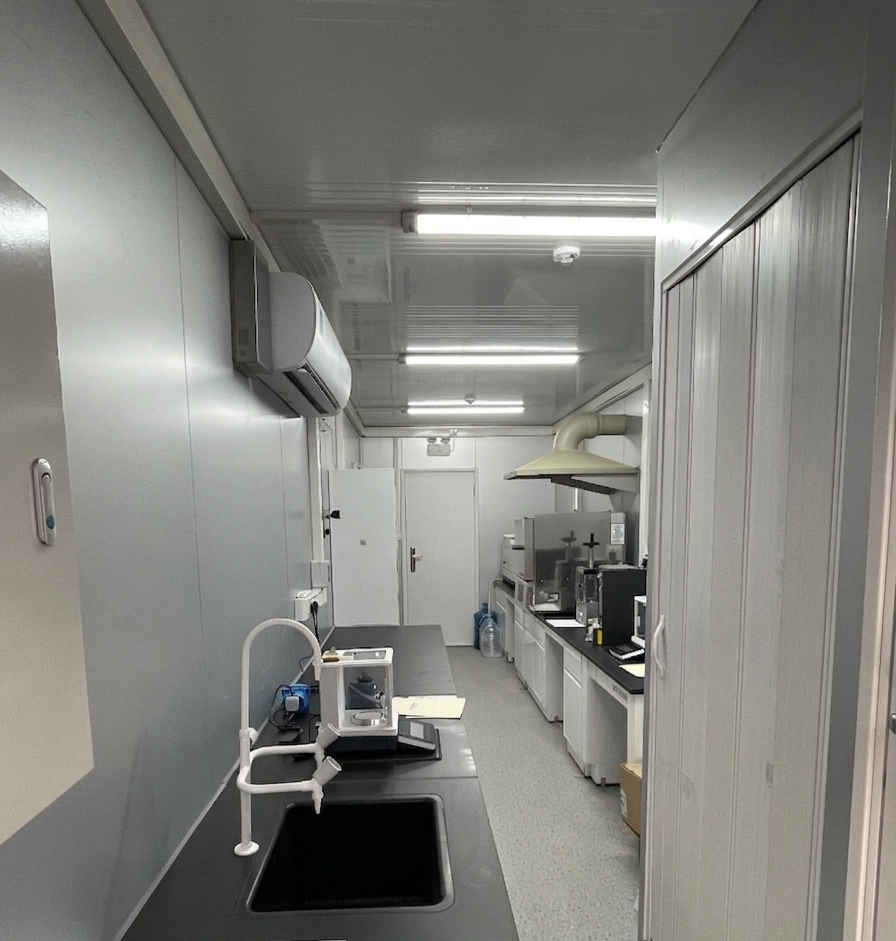

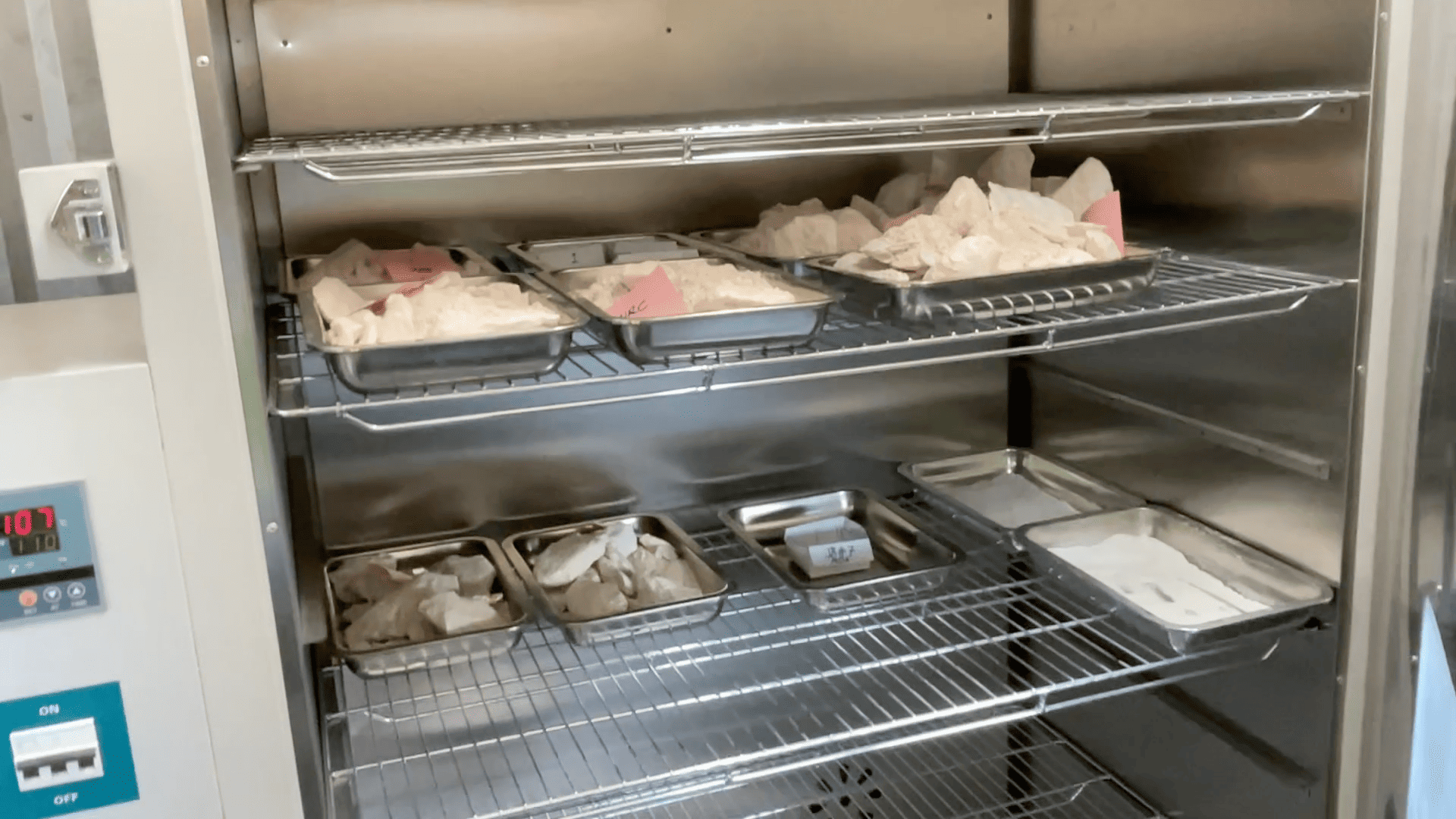

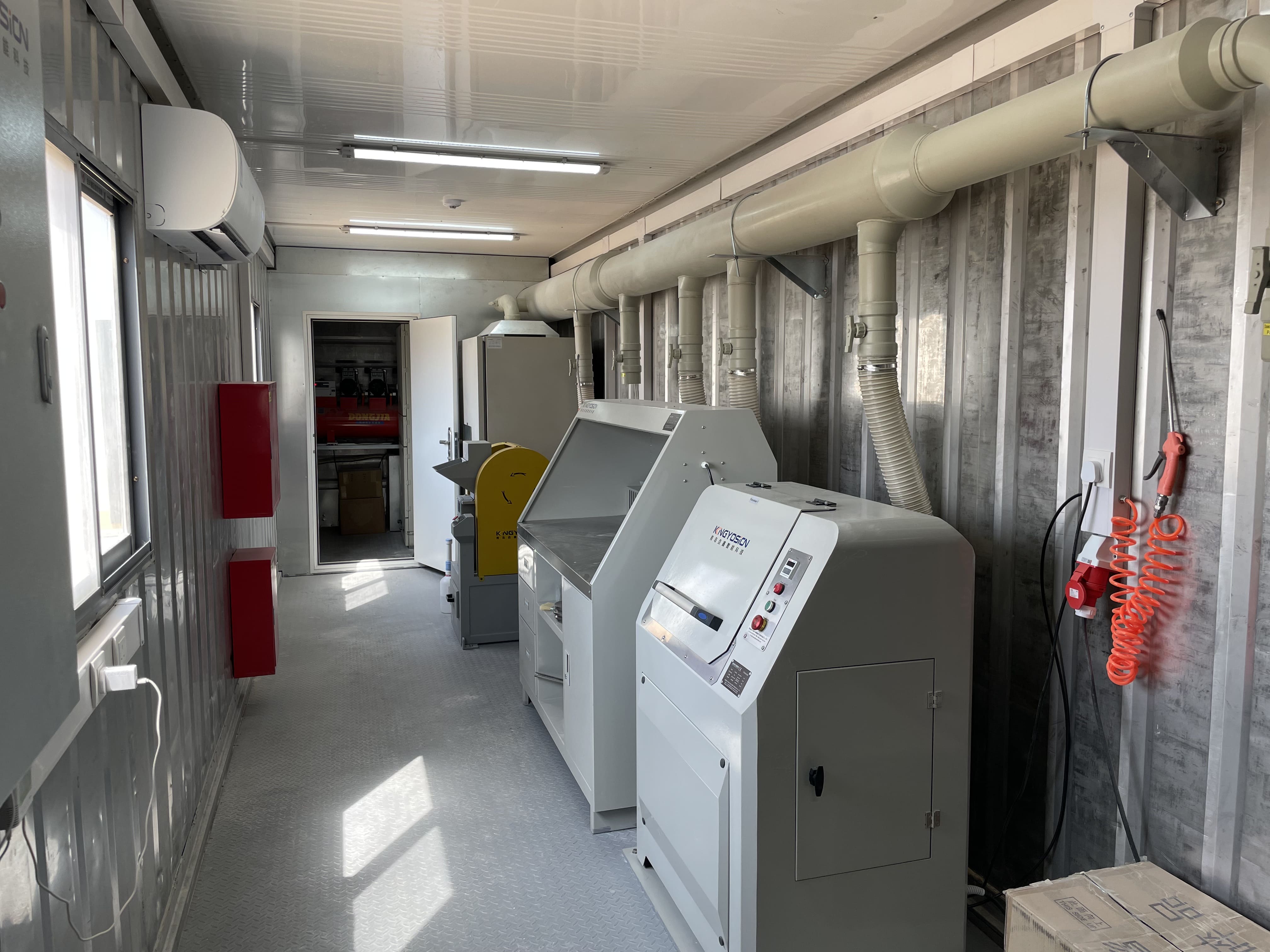

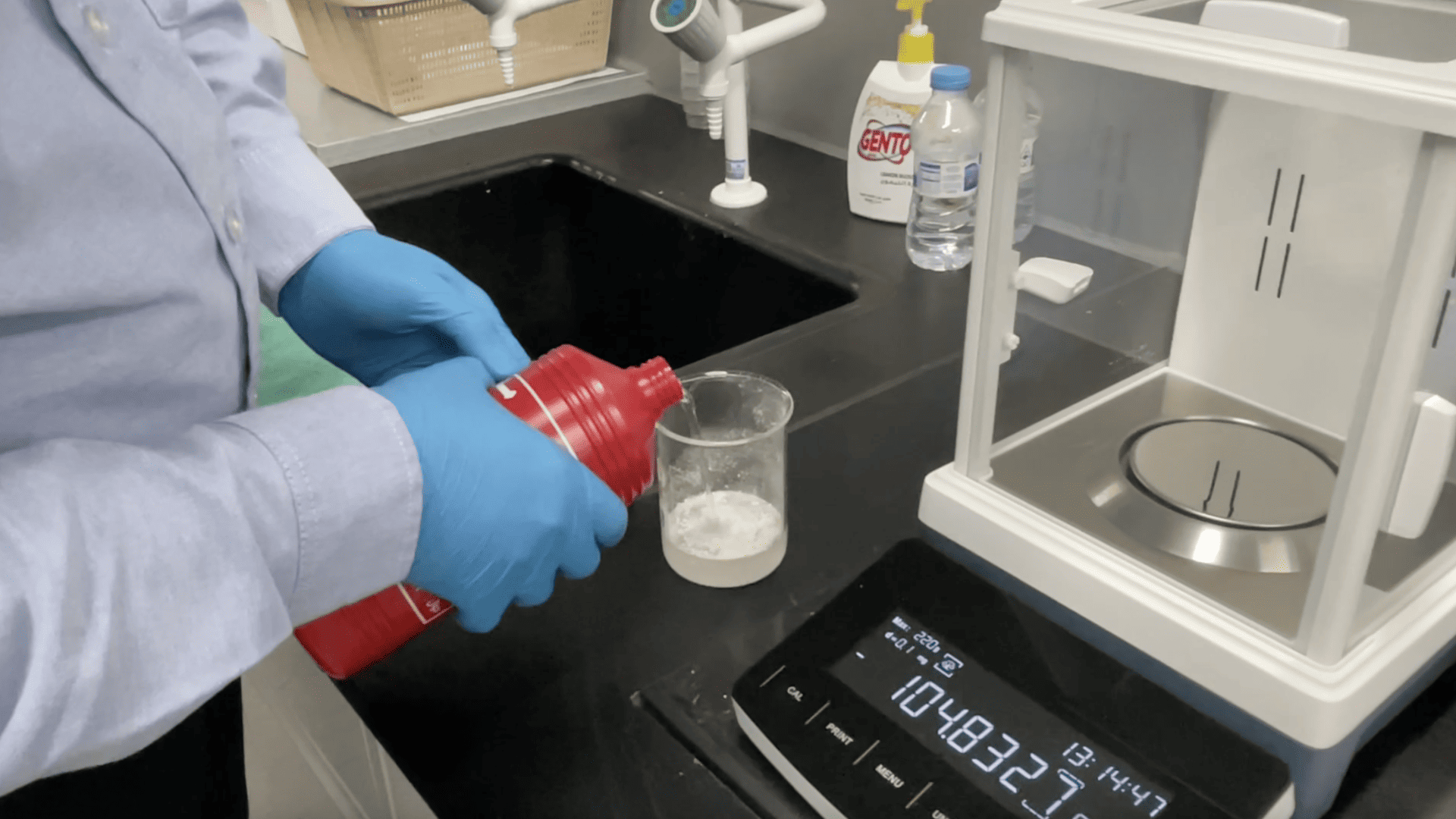

Our in-house laboratory is equipped with advanced analytical instruments and managed by qualified and experienced laboratory professionals specializing in mineral analysis and quality assurance. With strict process control and batch-wise monitoring, we ensure that every product meets the required customer specifications.
To strengthen our technical capabilities, our laboratory actively participates in proficiency testing programs and is in the process of aligning with ISO 17025:2017, reinforcing our commitment to continuous improvement, accuracy, and internationally recognized laboratory competence.
